What is a lightweight metal structure?
A light steel structure is a modern building system made of galvanized steel profiles, produced with precision in the factory and assembled on site. Due to their high earthquake resistance, quick assembly and excellent durability, light steel houses and buildings have become one of the most popular solutions for homes, offices and commercial spaces.
Asi Casa Design offers projects light steel houses and metal structures to the highest quality standards.
Advantages of Lightweight Metal Structures
1. Superior Earthquake Resistance
The lightweight metal system has an elastic structure that significantly reduces the effects of seismic movements, providing a safe and stable environment.
2. Fast Production and Efficient Assembly
The elements are manufactured to exact dimensions in the factory, and assembly on site is carried out in a much shorter time than in traditional construction.
3. High Durability and Maintenance-Free
Galvanized steel does not rust, rot, or get damaged by pests. Lightweight steel homes are durable and require minimal maintenance.
4. Excellent Thermal and Acoustic Insulation
With the right insulation materials, lightweight metal structures provide comfort in any season and contribute to long-term energy savings.
5. Light Weight and High Safety
The low weight of the structure reduces pressure on the foundation, making it an ideal choice even in areas with difficult soil.
6. Flexibility in Design and Modern Architecture
The system allows for customized projects for homes, offices or commercial spaces, offering total architectural freedom.
7. Ecological and Sustainable Solution
The steel is recyclable 100%, and the construction process generates very little waste, making it an environmentally friendly solution.
The Advantages of Asi Casa Design Light Steel Houses Compared to Other Types of Construction
Asi Casa Design light steel structure houses represent one of the most modern and efficient solutions on the market. Compared to traditional structures (concrete, brick or wood), light steel constructions offer numerous benefits in terms of safety, durability and speed of execution.
1. Lighter and stronger structure
Galvanized steel has a high load-bearing capacity and low weight. This combination provides excellent stability and reduces the load on the foundation.
2. Superior earthquake performance
Lightweight metal structures are flexible and better absorb seismic energy. This makes steel homes much safer in seismically hazardous areas.
3. Reduced production and assembly time
All elements are manufactured with precision in the workshop and arrive on site ready to assemble. Compared to concrete, the execution time is significantly shorter.
4. Excellent thermal and sound insulation
Our systems use mineral wool and basalt wool, offering a high level of energy efficiency. The houses are warm in winter and cool in summer, with low energy consumption.
5. Durable, crack-free walls
The metal structure does not change its shape over time, which eliminates the appearance of cracks specific to traditional masonry.
6. High fire safety
Materials such as Boardex, fiber cement and rock wool are classified A1 – non-combustible, providing additional fire protection.
7. Total architectural flexibility
The projects can easily adapt to any need. The partitioning, interior design and facade can be customized without structural limitations.
8. Long service life and corrosion resistance
Galvanized steel is protected against rust, and with minimal maintenance it can have a lifespan of 80–100 years.
Light Steel KIT Type Houses
KIT type houses / Complete package – Everything you need for assembly
Our structural packages include all the materials needed to build a light metal frame house:
- Light steel structure, cut, marked and ready to assemble
- Metal panels and profiles
- Boardex, OSB and materials for interior and exterior walls
- Mineral or basalt wool (thermal and sound insulation)
- Complete facade system
- Windows and doors (PVC or optionally aluminum)
- Fasteners and technical accessories
These packages are designed to simplify the assembly process and reduce costs.
Optional assembly – Professional team on request
Although KIT houses are delivered as standard without assembly, Asi Casa Design can offer, upon request:
- Specialized installation teams from abroad
- Complete installation at the project location
- Technical assistance at all stages of construction
This option is ideal for customers who want professional and quick installation.
International export – Sales in Romania and abroad
Asi Casa Design delivers KIT type houses to customers from:
- european union
- United Kingdom
- middle east
- Balkan countries
- Other international destinations
Packages are prepared for external transport, with professional packaging and complete logistical support.
Fast international delivery
Benefits of our external delivery:
- Fast transport by truck, trailer or sea container
- Complete export documents
- Safe packaging for handling and transport
- Short production and shipping time
Why choose Asi Casa Design?
- Fast and standardized production
- Premium materials and galvanized steel structure
- Competitive price for KIT type houses (complete package)
- International delivery and optional assembly
- Adaptation to any project and surface
- Sustainable, efficient and compliant constructions in accordance with European standards
Standard Package Light Steel House
Standard Package – from €240 + VAT / m². Shipping to Romania included.
structure metal light • Houses Modern • Construction QUICK
The Asi Casa Design Standard Package offers a modern, safe and durable solution for homes built on a light steel structure. Premium materials and quick assembly ensure a stable, efficient construction adapted to the climatic conditions of Romania.
Specifications TECHNICAL – Batch Standard (Updated)
Structure Main
- Lightweight galvanized steel structure
- Wall height: 2700mm
- Roof system: inclined 33%
Roof
- Simple panel: 10mm
- Roof insulation: 100mm wadding of glass
Walls and insulation
Wall outside – 120 mm
- Plaster mining
- Boardex – Plate of Fiber Cement army, resistance TO moisture and impact
- Class of reaction TO Fire: A1 – combustible
- OSB – optional, it maybe add TO APPLICATION CUSTOMER
- Lightweight metal frame
- (The plate gypsum-cardboard former Eliminated from the outside according to requirement)
Wall inside – 110 mm
- 12.5 mm drywall (both sides)
- OSB – optional, it maybe apply on both FACE before of gypsum-cardboard
- Lightweight metal frame
Insulation walls
- 80mm wadding mining
Joinery & Doors
- Exterior door: composite panel
- Interior doors: melamine-plated
- Fıratpen PVC windows, double glazing 4+12+4
finishes
Outside (Updated – Included in The package Standard):
- Concrete Contact – primer layer for high adhesion
- Adhesive with addition mineral – layer for uniformity and resistance
- Place FROM fiber of glass (fillet) – reinforcement and protection against cracks
- Primer SILICONE – preparation layer
- Paint Apart for gas concrete – exterior finish included in the standard package
Inside:
- White washable paint
Facilities
Electric
- Sockets, switches and flush-mounted boxes (VIKO)
health
- Pipes and connections under plaster (FIRATPEN)
Ceiling & Floor
- Ceiling: white plasterboard 12 mm
- Floor insulation: 100mm wadding mining
Models with Two Floors – For the models specific
Chassis floor
- Galvanized sheet metal 1.2mm
- Load-bearing capacity: 340 kg/m²
- Plate cement boards 16 mm included
Scale indoor
- Mild galvanized steel
- Metal railings
output & Price in Function of Design
Asi Casa Design produces light steel houses TO command, depending on the model, size and customer specifications.
✔ Custom design
✔ Optional OSB for interior and exterior walls
✔ Price set according to surface, materials and options
Premium Package Light Steel House
Premium Package – from €400 + VAT / m² Transport in Romania included.
Superior level of insulation • Premium finishes • Maximum durability
The Asi Casa Design Premium Package offers an advanced level of thermal comfort, structural protection and high-quality finishes. This package is designed for customers who want high energy performance and an extended lifespan of the construction.
Technical Specifications – Premium Package (Updated)
Main Structure
- Lightweight galvanized steel structure
- Wall height: 2700mm
- Roof system: inclined 33%
Roof
- Simple panel: 10mm
- Roof insulation: 100 mm glass wool
Walls and Insulation – Premium
Exterior wall – 120 mm + additional premium insulation
- Boardex – reinforced fiber cement board (class A1, non-combustible)
- OSB – included in the Premium package
- Lightweight metal frame
Complete facade system – Premium (updated, integrated):
Facade stratigraphy:
- Concrete Contact – primer layer for high adhesion
- The first layer of plaster reinforced with mesh (files) – mortar + fiberglass mesh
- Cladding with basalt wool 5–10 cm – superior thermal and sound insulation
- Layer of mesh-reinforced plaster over basalt wool – mortar + fiberglass mesh
- Silicone primer – preparation layer for finishing
- Exterior finish (customer chooses):
- APT paint for aerated concrete, structure type
- or
- Decorative plaster (mineral or silicone)
This system offers advanced weather protection, high energy efficiency and long-lasting durability.
Interior wall – 110 mm
- 12.5 mm drywall
- OSB included (both sides before drywall)
- Lightweight metal frame
- Insulation: 80 mm mineral wool
Carpentry & Doors – Premium
- Exterior door: premium composite panel
- Interior doors: melamine
- Standard windows: PVC Fıratpen
- OPTIONAL: premium aluminum joinery (thermally insulated profile)
Finishes – Interior
- Premium washable paint
Facilities
Electric
- Flush-mounted sockets, outlets and switches (VIKO)
health
- Pipes and connections under plaster (FIRATPEN)
Ceiling & Floor
- Ceiling: 12 mm white plasterboard
- Floor insulation: 100 mm mineral wool
Two-Story Models – Premium
- Floor chassis made of 1.2 mm galvanized sheet metal
- Betopan 16 mm board included
- Galvanized steel interior staircase + metal railings
Production & Price by Project
Asi Casa Design produces Premium light steel houses custom made, depending on:
✔ model and surface
✔ thickness of external insulation
✔ type of joinery (PVC / aluminum)
✔ additional options
Click to download our light steel house catalog.
Request for Quote – Light Steel House
Fill out the form below to receive a personalized offer. Our team will contact you as soon as possible for details and free consultation.
TECHNICAL SPECIFICATION
Material Steel
ST 37
Criteria of Calcutta
TS 648, TS 498, TS 11372
Boardex
TS EN 15283-1 + A1
Wadding of Glass
TS 901, DIN 18165
CALCULATION CRITERIA
Productions are made taking into account:
- snow load: 138 kg/m²
- wind speed: 124 km/h
- seismic zone: DEGREE I
- three climate zones
LOAD-BEARING SYSTEM

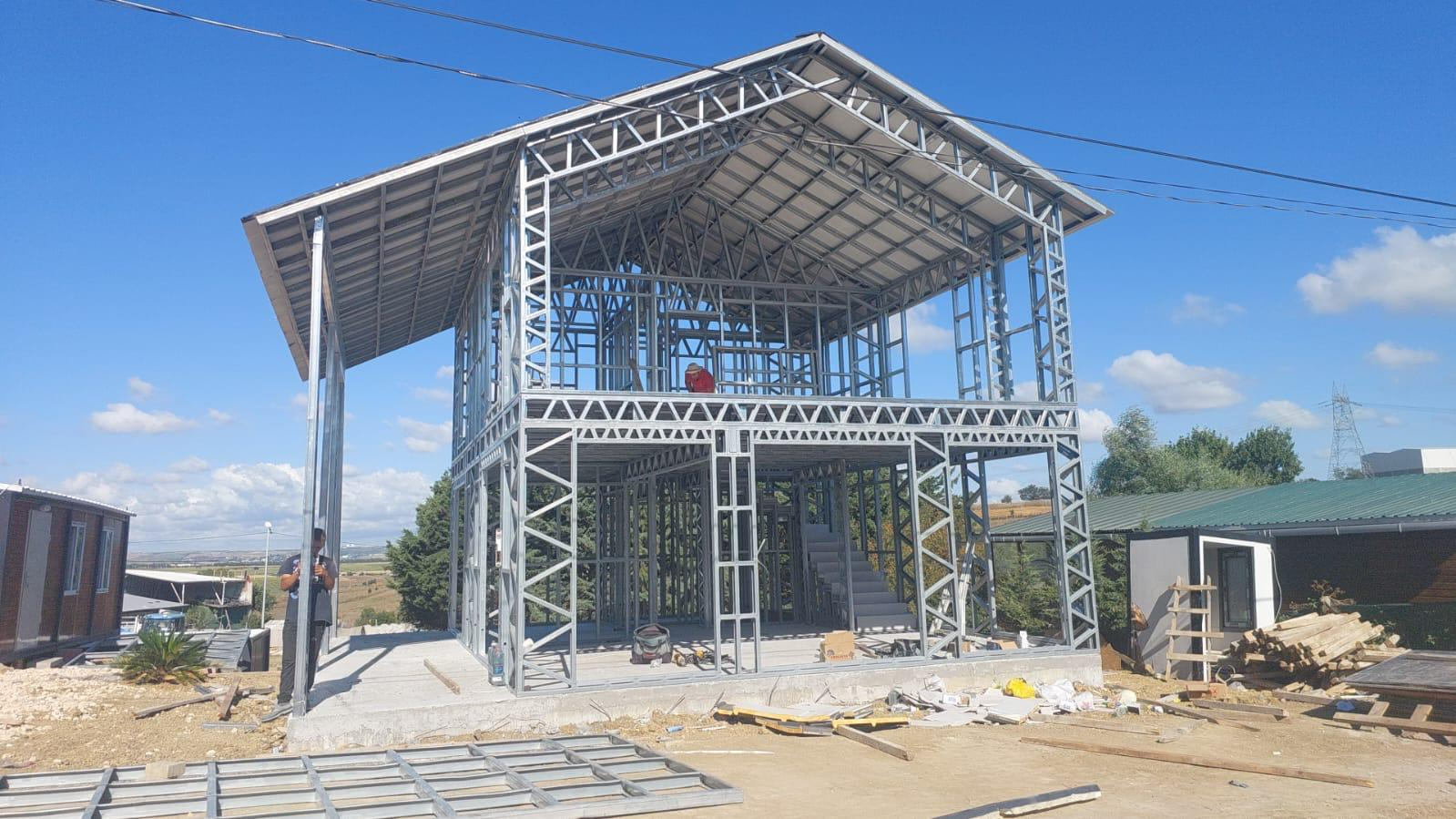

The U-type load-bearing profiles, obtained by the Rollform machine from galvanized sheet metal, and the U-profiles used in the production of trusses form the main skeleton of the building.
To stiffen the structure and connect the trusses to each other, omega-type purlins, also produced by Rollform, are used.
PLAN
The determination of sections of metallic materials is carried out using the SAP2000 method.
Projects are drawn in AutoCAD and provided as manufacturing drawings.
The entire portal system is made up of special galvanized C and U profiles, obtained using the Rollform machine.
All calculations and architectural drawings are made by our technical staff using AutoCAD and SAP2000.
1) EXTERNAL WALLS (H: 2700 mm – Thickness: 130mm)
Girl outer
– 12.5 mm fiberglass reinforced gypsum board
Girl inner
– 12.5 mm Knauf Flexi board
RESPONSE TO Fire (Class EuropEan)
– Fire: B
– Smoke: s1
– Flammable droplets: d0
Conductivity thermos
0.21 W/mK (8 mm)
Resistance to Fire
Euroclass A1 (TS EN 13501-1)
elements of Jointing
Rollform galvanized sheet products (1.2 mm)
Insulation
Knauf IPB037
size
80mm x 1250mm x 625mm
1-A) INTERIOR WALLS (H: 2700 mm – Thickness: 110mm)
Girl outer
Knauf Flexi board 12.5 mm
Girl inner
Knauf Flexi board 12.5 mm
RESPONSE TO Fire
Euroclass A1 (TS EN 13501-1)
Conductivity thermos
0.21 W/mK (8 mm)
Resistance to Fire
Euroclass A1 (TS EN 13501-1)
elements of Jointing
Obtained by Rollform from galvanized sheet metal
Insulation
Knauf IPB037
2) JOINING THE WALLS
The joining elements are produced from bent galvanized sheet metal, using a special "locked seam" joining system.
3) CEILING
Spaces rule
– 12 mm white plasterboard
– Special profile made of Rollform galvanized sheet metal
Spaces Wet
– Green plasterboard (moisture-resistant) 12 mm
– Special Rollform profile
Insulation
Knauf – Mineral Wool
– Thickness: 80 mm
– Width: 1200 mm
– Length: 8000 mm
Conductivity thermos: 0.044 W/mK
Resistance thermos: 2.27 R (m²K/W)
Class of Reaction TO Fire: Euroclass A1
It does not contain volatile organic compounds such as phenol or formaldehyde.
4) ROOF GROUP
Panel of Roof
10 mm polyurethane panel
Profile Exterior of FARM
S320 GD+Z, AZ (Erdemir 1322)
Thickness 1.2 mm – Galvanized M-profile 50×60 mm
Profile Interior of FARM
S320 GD+Z
Galvanized square profile 30×30 mm
elements more
Wedge (Asics)
Obtained by Rollform from galvanized sheet metal
Thickness 0.8mm
Eaves
30 cm – Bent galvanized sheet
Color: RAL 9002
Drains
Square metal gutters and downpipes 150 mm
5) DOORS
Doors INTERIOR
– 80×198 cm
– Metal frame
– American-style door, double-paneled
Doors exterior
– 90×198 cm
– Metal door (TSE standard)
WINDOWS
Window
PVC Fıratpen (TSE standard)
Vasistas
40/60 cm PVC (TSE standard)
heel Window
Galvanized sheet 1.2 mm
Width Profile
60 mm – 3 chambers
Glass windows
4+12.5+4mm
Frosted glass for wet areas
PAINTS GROUP
outer
Jotun – two-coat acrylic paint (TSE)
elements metal
Two-coat primer + two-coat paint (TSE)
inside
Polisan – two-layer plastic paint (TSE)
Ceiling
Two-layer plastic paint
ELECTRICAL INSTALLATION
Cables
3×2.5 NYM – TSE Standard
plugs and BREAKERS
TSE certificates
Lighting
2×40 fluorescent fixtures
Bathroom/WC: round ceiling light
Above the exterior door: globe ceiling light
SANITARY FACILITY
Water Cleanse
PVC pipes (TSE)
Water spent
PVC pipes (TSE)
INTERMEDIATE FLOOR SYSTEM (FOR TWO-LEVEL BUILDINGS)
Structure (Skeleton)
"Cage" panels made of bent galvanized sheet metal
Thickness
1.6 mm – Rollform
Plate upper
Concrete block 16 mm
False Ceiling
12 mm drywall
Insulation
Glass wool 80 mm
Capacity Loading
400 kg/m²
STAIRS (FOR TWO-LEVEL BUILDINGS)
Structure
Galvanized U-profiles obtained by Rollform
Plating
Concrete block 16 mm
RESPONSE TO Fire
– B
– Smoke: s1
– Drops: d0
Conductivity thermos
0.21 W/mK (16 mm)
Resistance to Fire
TS 1263 / DIN 4102-2
